Polymer Mixing Equipment

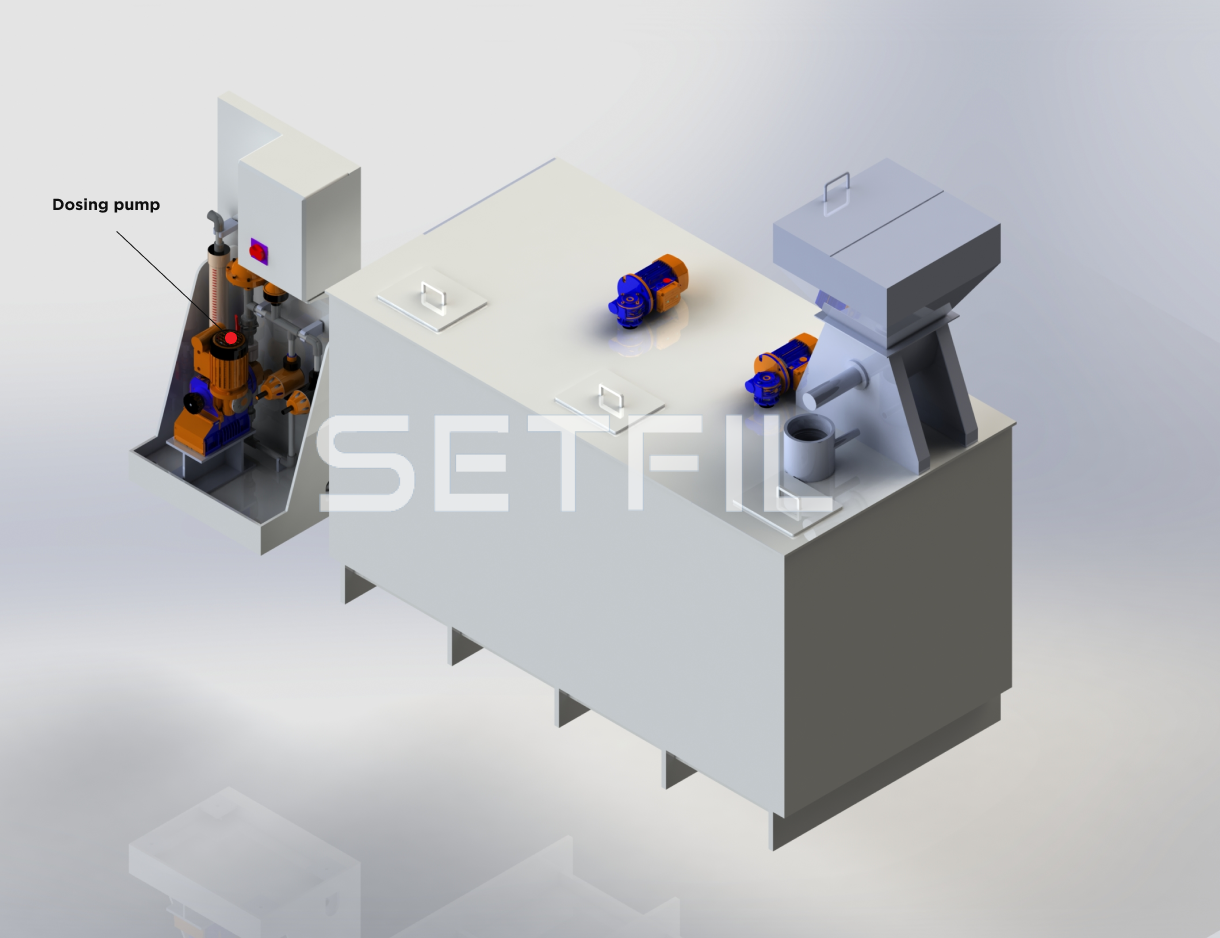

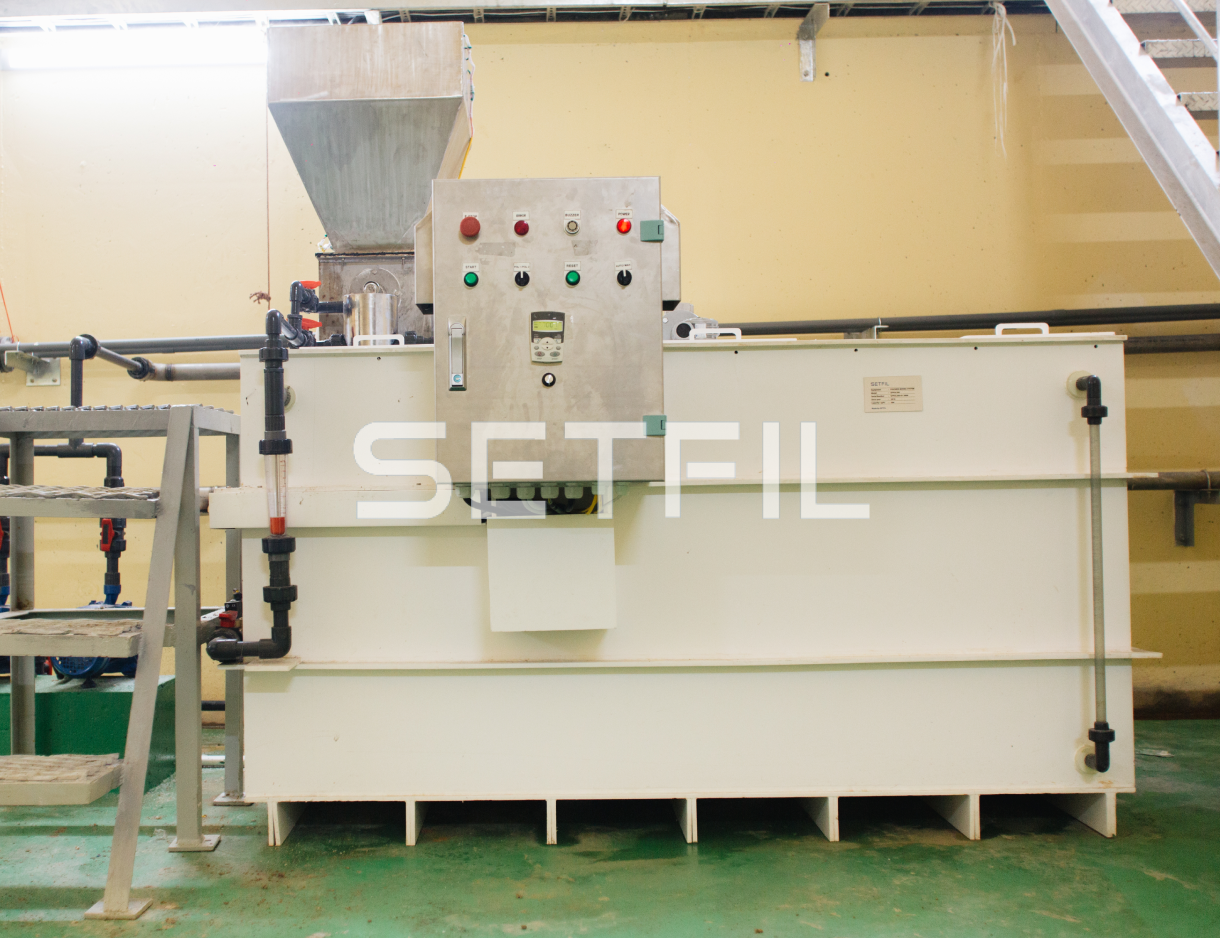

Polymer diluting and injecting equipment Guarantce a complete dilution of polymer articles

Fully Automated Process

Polymer solution is continuosly mixed, thus saving installation area and operational cost

Specifications

Model Dimension (LxWxH) Capacity (g/h) Polymer concentration (%) Power (kw/h) Stirring velocity (rpm)
SFPOL75 1500X1000X1000 75 0.1 1.2 60-90
SFPOL150 2000X1000X1000 150 0.1 1.2 60-90
SFPOL250 2000X1000X1000 250 0.1 1.35 60-90
SFPOL500 2000X1000X1000 500 0.1 1.7 60-90
SFPOL1000 2000X1000X1000 1000 0.1 1.7 60-90
SFPOL2000 2000X1000X1000 2000 0.1 2.05 60-90
SFPOL5000 2000X1000X1000 5000 0.1 1.35 60-90
