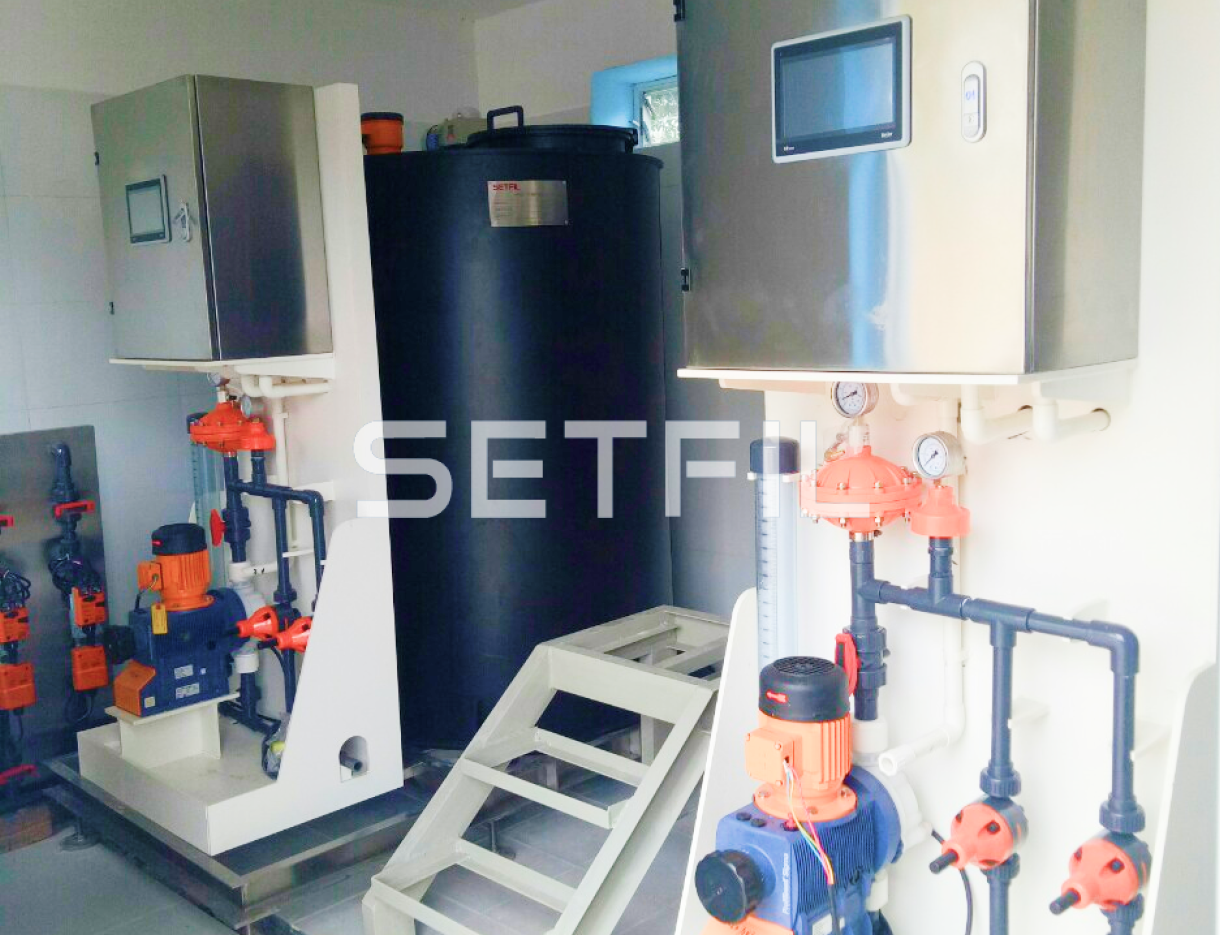

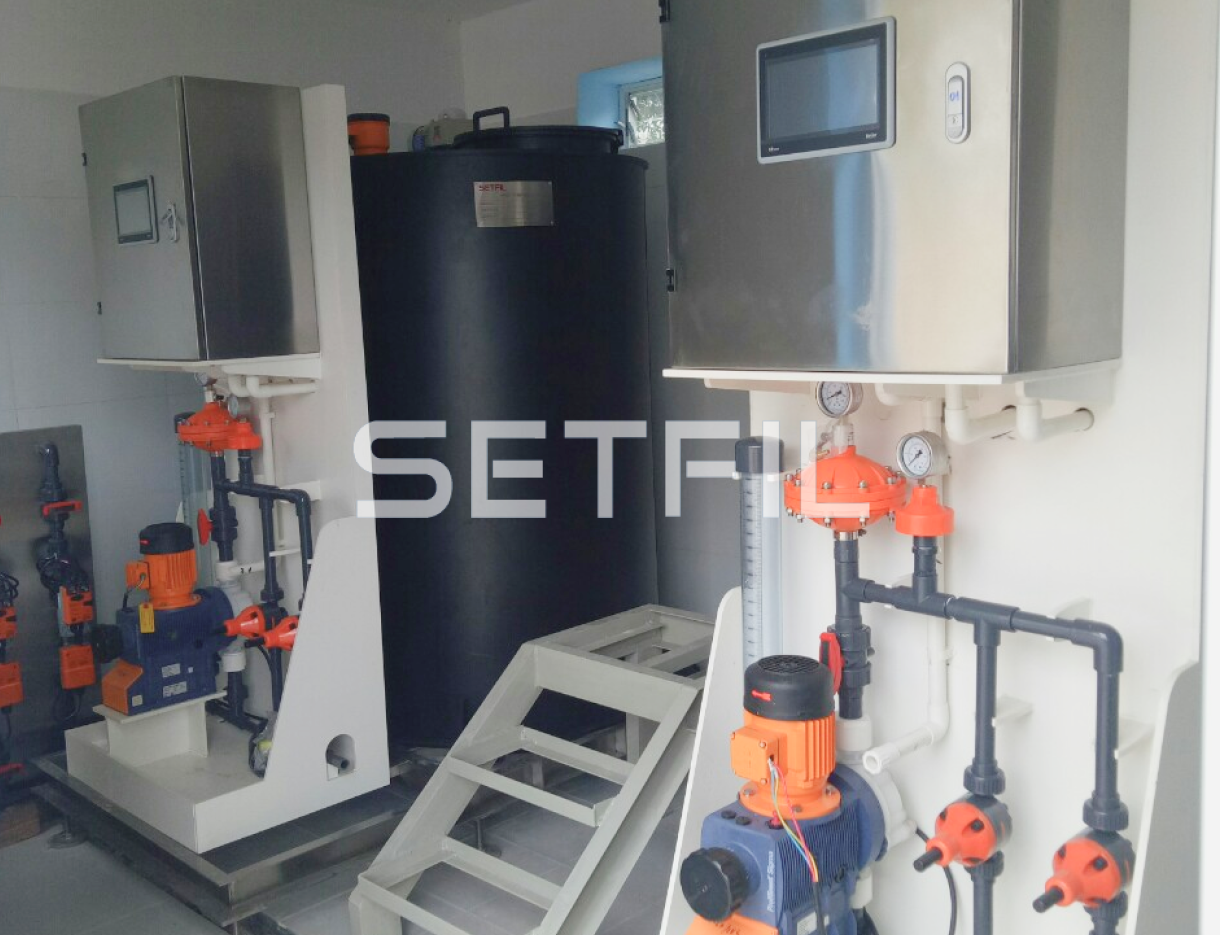

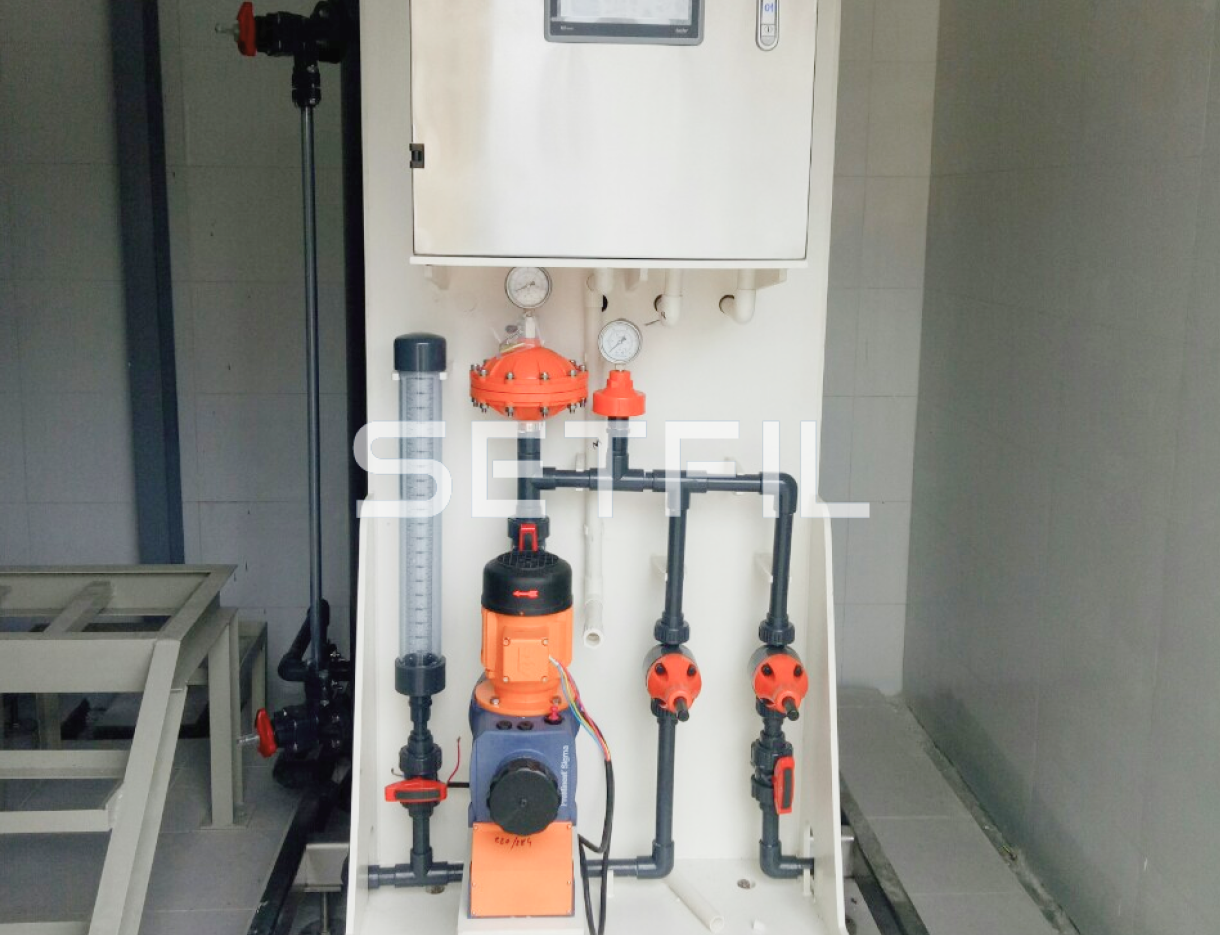

Chemical Dosing Equipment

Ideal for the automatic and accurate formulation of different chemicals, in demanding industry applications.

Widely used in wastwater and water treatment plants.

Optimal Investment Choice

  • Compact structure: Quick and esay installation.

  • Fully automatic operation controlled by SCADA.

  • Low maintenance costs: spare parts available.

  • Extremely durability: Top-notch materials and workmanship.

High Efficiency

SETFIL’s agitation technology guarantees homogenous mixing result, process reliability and precise dosing for optimum performance.

Specifications

Model Tank material Dimension (DxRxC) mm Tank volume (m3) Stirring speed (v / p) Power consumtion (Kw/h) Metering pump (l/h) Inlet Pipe (Inch) Outlet tube (Inch) Exhaust pipe (Inch)
SFC 5-1
SFC 5-2
SFC 5-3
PE 1440x840x1550 0.5 60-90 0.39 40
84
120
1 1/2
1/2
1/2
11/2
SFC 10-1
SFC 10-2
SFC 10-3
PE 1760x1160x1850 1 60-90 0.39
0.44
40
84
120
1 1/2
1/2
3/4
11/2
SFC 15-1
SFC 15-2
SFC 15-3
PE 1860x1260x1850 1.5 0.39
0.44
65
120
220
1.1/4 1/2
3/4
1
11/2
SFC 20-1
SFC 20-2
SFC 20-3
SFC 20-4
PE 1880x1280x2350 2 60-90 0.44
0.66
84
120
220
350
1.1/2 1/2
3/4
1
1
11/2
