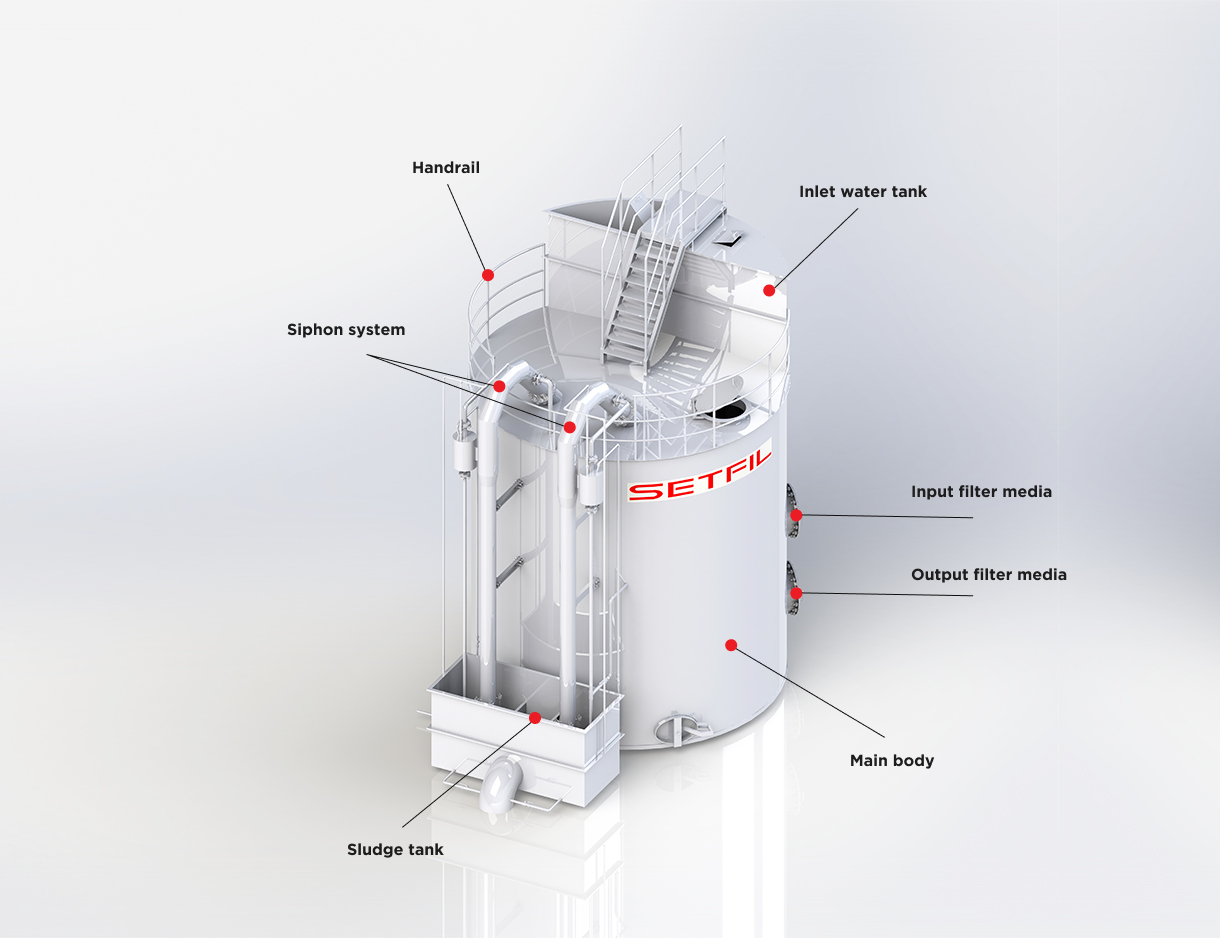

Gravity Filter

Operating on Siphone principle - Using gravity to seperate water

9.2 - 10m/h

Filter Viclocity

~ 0Kw/m3

Power Usage>

0.5 - 0.7%

Water Loss Ratio

Automated Operational Process

  • Based upon Siphone priciple, SETFIL gravity filter is operated automatically without electricity and back wash pump.

  • No operating personnel.

  • No equipment control.

Best investment choice

  • Small installation area.

  • Simple installation process.

  • Top- notch quality materials for longer service life.

Operating Cost Optimization

  • Zero Energy consumption.

  • Reduced labour costs.

  • Saving time and water on back washing the filter media: 7-10 mins.

  • Little maintenance required. No moving parts: No wear - no tear.

Specifications

Model Capacity (M3/d) Diameter (mm) Height (mm) Inlet Pipe (mm) Outlet Pipe (mm)
SFFT3500 3500 4500 4500 DN300 DN300
SFFT3000 3000 4200 4500 DN300 DN300
SFFT2500 2500 3800 4500 DN250 DN250
SFFT2000 2000 3400 4500 DN250 DN250
SFFT1500 1500 3000 4500 DN200 DN200
SFFT1000 1000 2400 4500 DN150 DN150
SFFT500 500 1700 4500 DN100 DN100
